PVC Gravity Sewer Pipe
PVC Gravity Sewer Pipe

PVC Gravity Sewer Pipe

Sewer & Drain

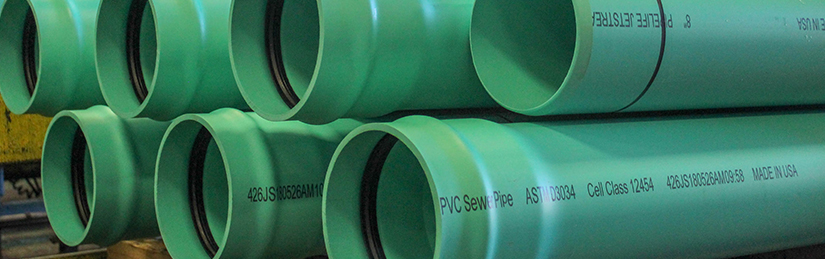

All SDR35 and SDR26 gravity sewer pipe produced by Jet Stream meets the requirements of ASTM D3034 for sizes 4″-15″ and ASTM F-679 for 18″-24″ pipe. The standard laying length is 14′ and 20′ lengths available upon request. The pipes are produced with an integral bell end with gasket seal, which has been reinforced with a steel ring, band, or other rigid material that permanently locks the gasket in place during manufacturing. The joint shall be in compliance with the requirements of ASTM D3212 (joints for drain and sewer plastic pipes using flexible elastomeric seals).

SDR 26 / PS 115

ASTM D3034 PSM

Nominal Size
Outside Diameter
Wall Thickness
Gasket Joint Lay-Length
Pieces Per Pallet
Solvent Joint Lay-Length
Pieces Per Pallet
Weight Per 100 Feet
4″
4.215
.162
14′
90
10′ – 20′
138.80
6″
6.275
.241
14′
40
10′ – 20′
309.80
8″
8.400
.323
14′
24
N/A
557.20
10″
10.500
.404
14′
12
N/A
860.60
12″
12.500
.481
14′
8
N/A
1232.00
15″
15.300
.588
14′
3
N/A
1855.40

4″ & 6″ SDR 26 – 10-foot lengths – available in perforated – 2 rows or 3 rows of holes
20-foot lengths – available, except for 15″

SDR 26 / PS 115

ASTM F679

Nominal Size
Outside Diameter
Wall Thickness
Gasket Joint Lay-Length
Pieces Per Pallet
Solvent Joint Lay-Length
Pieces Per Pallet
Weight Per 100 Feet
18″
18.701
.720
14′
2 & 3
N/A
N/A
2812.90
21″
22.047
.848
14′
2 & 3
N/A
N/A
3933.50
24″
24.803
.954
14′
2
N/A
N/A
4995.00

SDR 35 / PS 46

ASTM D3034 PSM

Nominal Size
Outside Diameter
Wall Thickness
Gasket Joint Lay-Length
Pieces Per Pallet
Solvent Joint Lay-Length
Pieces Per Pallet
Weight Per 100 Feet
4″
4.215
.120
14′
90
10′-20′
90-33
106.30
6″
6.275
.180
14′
40
10′-20′
90-33
234.10
8″
8.400
.240
14′
24
N/A
N/A
419.00
10″
10.500
.300
14′
12
N/A
N/A
655.70
12″
12.500
.360
14′
9
N/A
N/A
932.80
15″
15.300
.437
14′
3
N/A
N/A
1402.00

4″ & 6″ SDR 35 – 10 foot lengths – Available in perforated – 2 rows or 3 rows of holes
20-foot lengths – available, except for 15″

SDR 35 / PS 46

ASTM F679

Nominal Size
Outside Diameter
Wall Thickness
Gasket Joint Lay-Length
Pieces Per Pallet
Solvent Joint Lay-Length
Pieces Per Pallet
Weight Per 100 Feet
18″
18.701
.536
14′
3
N/A
2 & 3
2117.40
21″
22.047
.630
14′
2 & 3
N/A
N/A
2951.40
24″
24.803
.709
14′
2
N/A
N/A
3752.10

PVC Drainage Pipe – ASTM D2729

Perforation styles 1, 2 & 3

Nominal Size
Outside Diameter
Wall Thickness
Gasket Joint Lay-Length
Pieces Per Pallet
Solvent Joint Lay-Length
Pieces Per Pallet
Weight Per 100 Feet
3″
3.250
.070
N/A
156
10′
N/A
N/A
4″
4.215
.075
N/A
90
10′
N/A
N/A
6″
6.275
.100
N/A
33
10′
N/A
N/A

Perforation Styles

PVC Drainage Pipe – ASTM D2729

Perforation styles 1, 2 & 3

Size
O.D.
Wall
Length
Rows of Perforations
Hole Size
Hole Spacing Per Row Inches
Feet Per Pallet
3″
3.250
.070
10′
2
5/8″
5
1560
4″
4.215
.075
10′
2
5/8″
5
900
6″
6.275
.100
10′
2
5/8″
5
330

PVC SDR 35 Sewer Pipe

Perforation styles 1 & 2

Size
O.D.
Wall
Length
Rows of Perforations
Hole Size
Hole Spacing Per Row Inches
Feet Per Pallet
4″
4.215
.120
10′
2
5/8″
5
900
6″
6.275
.180
10′
2
5/8″
5
330

PipeLife Jet Stream Inc. PVC Gravity Sewer Pipe is manufactured using the Rieber Gasket System.
The Rieber Gasket is manufactured in accordance with SSTM F477 standards.
We cannot say that the locked-in gasket will never have a problem; however, the performance of the locked-in gasket is as close to trouble-free as you can get.  A trouble-free locked-in gasket joining installation will guard against rolled gaskets and gasket installation mistakes.
