Water Distribution

The outside dimensions of the pipe are manufactured to iron pipe sizes (IPS) in compliance with ASTM D-2241.

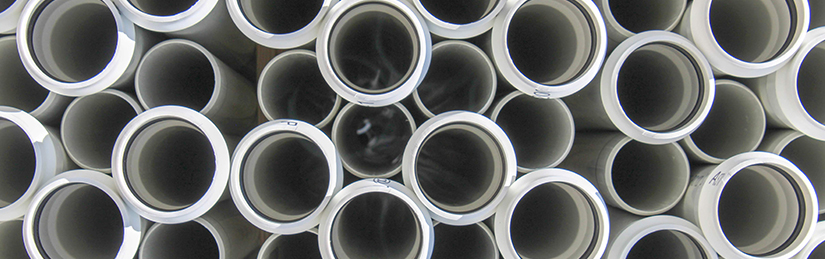

Pipes are produced with an integral bell and the gasket seal is of the locked-in type gasket reinforced with a steel band or other rigid material. The joint is in compliance with the requirements of ASTM D-3139.

Standard color of Pipelife Jet Stream, Inc. pressure rated IPS is white. Alternative colors are also available upon request.

SDR 26

160 PSI PVC 1120

Size
Outside Diameter
Min Wall Thickness
Weight (lbs/100 ft)
Pieces Per Pallet
Order Units
1.5″
1.900
.073
28
203
2
2″
2.375
.091
44.20
140
2
2.5″
2.875
.110
64.10
87
2
3″
3.5
.135
94.80
60
2
4″
4.5
.173
155.20
36
2
6″
6.625
.255
338.80
30
4
8″
8.625
.332
575.20
18
4
10″
10.750
.413
898.70
11
4
12″
12.750
.490
1265.30
4
2

SDR 21

200 PSI PVC 1120

Size
Outside Diameter
Min Wall Thickness
Weight (lbs/100 ft)
Pieces Per Pallet
Order Units
1.5″
1.900
.090
34.60
203
2
2″
2.375
.113
53.50
140
2
2.5″
2.875
.137
78.10
87
2
3″
3.5
.167
115.10
60
2
4″
4.5
.214
190.50
36
2
6″
6.625
.316
416.30
30
4
8″
8.625
.410
705.20
18
4
10″
10.750
.511
1098.20
11
4
12″
12.750
.606
1550.90
4
2
