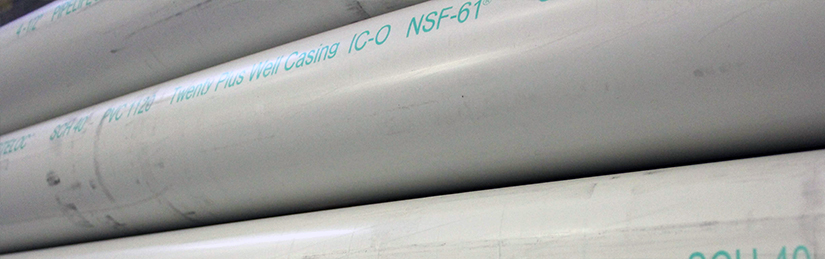

Twenty + Plus PVC Well Casing

Twenty + Plus PVC Well Casing
Twenty + Plus PVC Well Casing

Twenty + Plus PVC Well Casing

Slotted BE

Jet Stream Twenty + well casing is produced to ASTM F480 specifications from polyvinyl chloride material type 1, grade 1 & 2, and bears the NSF Seal of Certification.

SDR 26

Size
Casing O.D.
Casing I.D.
Wall Thickness
Bell O.D.
Bell Depth
4″
4.500
4.154
0.173
4.846
6.000
4.5″
4.950
4.570
0.190
5.330
6.000
5″
5.563
5.135
0.214
5.991
6.500
6″
6.625
6.115
0.255
7.135
7.000
8″
8.625
7.961
0.332
9.289
7.500
10″
10.750
9.924
0.413
11.576
7.750
12″
12.750
11.770
0.490
13.730
8.250
16″
116.000
14.768
0.616
17.375
8.250

SDR 21

Size
Casing O.D.
Casing I.D.
Wall Thickness
Bell O.D.
Bell Depth
4″
4.500
4.072
0.214
4.928
6.000
5″
5.563
5.033
0.265
6.093
6.500
6″
6.625
5.993
0.316
7.257
7.000
6 1/8″
6.900
6.242
0.329
7.558
7.250
8″
8.625
7.805
0.410
9.445
7.500
10″
10.750
9.728
0.511
11.772
7.750
12″
12.750
11.538
0.606
13.962
8.250

SDR 17

Size
Casing O.D.
Casing I.D.
Wall Thickness
Bell O.D.
Bell Depth
4.5″
4.950
4.368
0.291
5.532
6.000
5″
5.563
4.909
0.327
6.217
6.500
6″
6.625
5.845
0.390
7.405
7.000

SCH 40

Size
Casing O.D.
Casing I.D.
Wall Thickness
Bell O.D.
Bell Depth
2″
2.375
2.067
0.154
2.683
5.000
4″
4.500
4.026
0.237
4.974
6.000
4.5″
4.950
4.454
0.248
5.446
6.000
5″
5.563
5.047
0.265
6.079
6.500
6″
6.625
6.065
0.280
7.185
7.000
8″
8.625
7.961
0.332
9.289
7.500
10″
10.750
10.020
0.365
11.675
7.750
12″
12.750
11.938
0.406
13.675
8.250
16″
16.000
15.000
0.500
17.000
8.250

SDR 27.6

Size
Casing O.D.
Casing I.D.
Wall Thickness
Bell O.D.
Bell Depth
6.25″
6.900
6.400
0.250
7.400
7.250
