Water Distribution

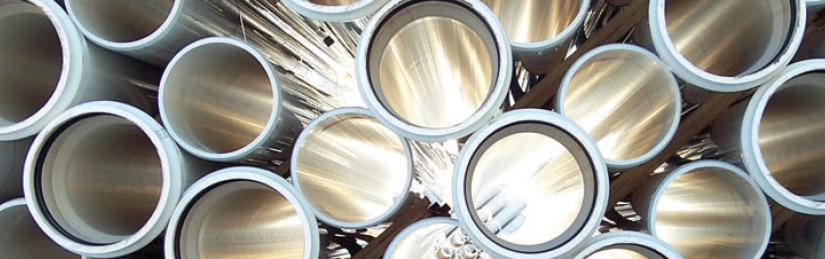

PipeLife Jet Stream manufactures IPS gasketed pipe from 1 1/2″ to 12″. Our pipes are manufactured under ASTM D2241 and meet or exceed ANSI/NSF 14 standards.

The primary purpose of PipeLife Jet Stream IPS is for the conveyance of potable water.

PipeLife Jet Stream uses compound according to ASTM D1784-
12454 as well as integral gasket joints according to ASTM F477 and ASTM D3139. To aid in the installation of PipeLife Jet Stream’s IPS, each spigot end is beveled and includes a depth mark for insertion guidance.

Integral gasket joint

Exceeds the requirements of ASTM D2241

NSF approved

Easy to order pallet quantities

Gaskets & lubricant included in price

12454 (Type 1, Grade 1, PVC 1120)

SDR 26 – 160 PSI PVC 1120

ASTM D1784-12454, ASTM F477, ASTM D3139

Size
Outside Diameter
Min Wall Thickness
Weight (lbs/100 ft)
Pieces Per Pallet
Order Units
1.5″
1.900
.073
28.30
203
2
2″
2.375
.091
44.20
140
2
2.5″
2.875
.110
64.10
87
2
3″
3.500
.135
94.80
60
2
4″
4.500
.173
155.20
36
2
6″
6.625
.255
338.80
30
4
8″
8.625
.332
575.20
18
4
10″
10.750
.413
898.70
11
4
12″
12.750
.490
1265.30
4
2

Purple pipe for reclaimed water is available upon request.

SDR 21 – 200 PSI PVC 1120

ASTM D1784-12454, ASTM F477, ASTM D3139

Size
Outside Diameter
Min Wall Thickness
Weight (lbs/100 ft)
Pieces Per Pallet
Order Units
1.5″
1.900
.090
34.60
203
2
2″
2.375
.113
53.50
140
2
2.5″
2.875
.137
78.10
87
2
3″
3.500
.167
115.10
60
2
4″
4.500
.214
190.50
36
2
6″
6.625
.316
416.30
30
4
8″
8.625
.410
705.20
18
4
10″
10.750
.511
1098.20
11
4
12″
12.750
.606
1550.90
4
2

Purple pipe for reclaimed water is available upon request.

SDR 17 – 250 PSI PVC 1120/1220

ASTM D1784-12454, ASTM F477, ASTM D3139

Size
Outside Diameter
Min Wall Thickness
Weight (lbs/100 ft)
Pieces Per Pallet
Order Units
2″
1.900
.112
64.70
140
2
3″
3.500
.206
140.20
60
2
4″
4.500
.265
232.40
36
2
6″
6.625
.390
507.20
30
4
8″
8.625
.508
862.50
18
4

Purple pipe for reclaimed water is available upon request.
